Genron5000L 5 silons 3 axles aluminum alloy tank semi trailer for sale to Guinea.
Discription of Aluminum alloy tank semi trailer:
The ALUMINUM ALLOY TANK TRAILER body is made of high-quality steel, advanced technology and strict production process. The structure of the vehicle is reasonable, the performance is reliable, the operation is simple and the appearance is beautiful. All parts are manufactured by famous manufacturers at home and abroad, and they are purchased, inspected and used in strict accordance with the requirements of quality system documents to ensure the good performance of the vehicle.
The CONFIGURATIONS of GENRON 5L 5 compartments aluminum alloy tank semi trailer:
| Supplier | Qingdao Genorn International Trade Co.Ltd |
| Model Number | GVG1225 |
| Product name | Genron 45000 litters 5 compartments Aluminum alloy tank semi traielr for Burkina Faso |
| | TANK BODY |
| Shape | Round or Square (Optional) |
| Dimension | 9500-13000*2500*3900mm (Exact size depends on the final design) |
| Tare Weight | About 8000kgs-12800kgs |
| Capacity | 32,000-60,000 liters |
| Tank body material | 5mm or 6mm/Q235 Carbon steel plate/ Aluminum alloy 5083 ,5182,5454 / Stainless steel |
| Dished End | 6mm or 7mm/Q235 Carbon steel plate/ Aluminum alloy 5083 ,5182,5454 / Stainless steel |
| Manhole Cover | Carbon steel/ aluminum/ stainless steel manhole cover, diameter 500mm, 1-9 pieces |
| Bottom Valve | Aluminum / Stainless steel |
| Discharging Valve | Diameter 3" or 4" or 6" |
| Compartments | Optional |
| Discharging hose | Rubber tube, 2 pieces, 6 m each |
| | CHASSIS |
| Main beams | Aluminum Alloy |
| Axle | 13T/16T, FUWA/BPW /SHENGRUN brand |
| Kingpin | 2" or 3.5" brand optional |
| Suspension | Mechanical suspension/Air suspension |
| Leaf spring | 90mm (W) * 13mm (T)* 10 layer or 100mm *12mm *12 layer |
| Braking system | RE 6 relay valve, spring brake chamber, 2 pieces of 45 L air tanks |
| Tire | 12.00R22.5/315/80R22.5/11.00R20/12.00R20 brand optional |
| Rim | 9.00*22.5/8.0-20/8.5-20 |
| ABS | Optional |
| Fire extinguiser | 2 pieces |
| Spare tire carrier | 2 pieces |
| Safety guard | Standard |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of anti-corrosion primer, 2 coats of final painting |
| Tool box | One pieces standard |
| Lights | LED, 24V |
| Shipping terms | By 40" HQ container or bulk vessel or RORO ship |
Dear friend ,different configurations,different prices.
The detail for the GENRON 5L 5 compartments aluminum alloy tank semi trailer:
Three -layer paint ,high - quality elactrical circuit .High load and low weight suspension ,optional air suspension.28T linkage gear with multiple specifications can be equipped eith different materials.To make sure a long service life ,the spare parts we used are from China/World famous brand.

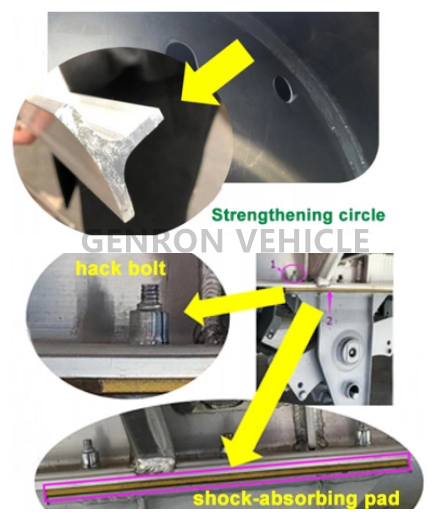

National patented T-shaped beam, bearing capacity and torsion resistance are 3-5times that of traditional L-shaped longitudinal beam.ASME standard aluminum alloy tank body, three prismatic reinforcement ring,stress absorption and impact resistance.
Tailor-made shock-absorbing and shock-proof suspension, permanent bolts and shock-absorbing pads make the vehicle more stable.Robot welding + patented tool fixture, welding quality and strength are higher than the cylinder plate.The center of gravity of the body and chassis is 5-10cm lower than the center of gravity of peer manufacturers, the fuel tank is lighter, and the safety and rollover resistance are stronger.
Package and shipping for the 45000 litters 5 compartments aluminum alloy tank semi traielr:
Delivery time: 10-20 working days after payment receipt is confirmed (subject to actual quantity).
Packaging: Standard export packaging, or customized packaging according to your requirements.
Professional freight forwarder.
Our service:
1.The main parts (engine, axle, body and beam, etc.) are 1.12 months.
2. Get technical support by phone Whatsapp or email 24/7.
3. Lifetime parts support.
About Genorn Vehicle:
We are a factory which produces semi-tanker traielrs in China. The number of trailers produced and sold each year is around 7,200. The exported vehicles are ten years old. It is your trusted brand for trailers. Our products include container trucks, bagged cargo trucks, bulk cement trucks, petroleum, crude oil, asphalt, cars, agricultural trucks, etc.
Please let me know your specific needs, we will design a vehicle for you to meet your national road conditions.
I am Zoe ,If you want to place an order or learn more,let me know ,my whatsapp number +86-18363983168 (24 hours on line)
